Diagnosing the Hidden Attic Breaker Behind Your Dead AC

The Frustration of a Suddenly Unresponsive AC in Late Summer

Your vents are completely silent, the indoor temperature is climbing fast, and you are suddenly faced with diagnosing the hidden attic breaker behind your dead AC. It usually happens at the worst possible moment—just as families are transitioning back to school and late-summer wear takes its toll on the system. You walk over to the thermostat, expecting to hear the familiar hum of the blower motor kicking on, but the screen is either blank or completely unresponsive to your adjustments. The immediate panic sets in as you realize your home is rapidly losing its defense against the intense August heat.

For most homeowners, the very first troubleshooting step is a quick walk out to the garage to check the main electrical panel. You open the metal door, scan the rows of switches, and look for a flipped breaker labeled "AC" or "HVAC." When you find that every single switch is firmly in the "ON" position, a sinking feeling takes over. If the main panel is perfectly fine, but the system is completely dead, it is easy to assume the worst: a catastrophic compressor failure, a burned-out blower motor, or a fried control board.

However, modern HVAC systems are highly complex networks with multiple layers of safety mechanisms built in. What many property owners do not realize is that the main electrical panel in the garage is only the first stop on the power's journey to your cooling equipment. There are secondary safety switches, disconnects, and localized breakers positioned strategically near the actual mechanical units.

The hidden reality: A completely dark thermostat and a silent indoor unit often point to a loss of high-voltage power at the air handler itself. Before you start bracing for a massive replacement bill, a thorough diagnostic approach is critical. Uncovering the true cause requires looking beyond the obvious primary panel and investigating the hidden electrical pathways that keep your home comfortable.

Why Homes Suffer Multi-Day Outages Over Missed Diagnostic Steps

The Problem: When an air conditioner fails during the peak of end-of-season cooling, the rush to get the system restored can sometimes lead to hasty troubleshooting. A technician might arrive, check the outdoor condensing unit, verify the main electrical panel in the garage, and immediately declare that a major internal component has failed. Because the indoor air handler is difficult to reach, the crucial step of verifying power at the secondary attic disconnect is simply skipped.

The Cause: This rushed diagnostic approach stops at the most accessible points of the system. In our years of servicing Chandler AZ, our team at Monster Air & Mechanical LLC frequently sees a pattern where homes go days without cooling simply because an initial check missed the attic entirely. In one instance, a local homeowner was left without air conditioning for five full days during extremely hot August weather. An initial assessment had failed to trace the electrical path all the way to the indoor unit. When our technician arrived, we identified the tripped breaker up in the attic, reset it, and waited to ensure everything was running smoothly—completely resolving the issue without needing to order or replace any major parts.

The Solution: The physical and emotional toll of waiting nearly a week for major components, only to discover the issue was a simple hidden electrical disconnect, is immense. This is why a comprehensive evaluation is non-negotiable. At Monster Air & Mechanical LLC, we insist on checking the entire system—including hidden attic components—preventing these unnecessary multi-day outages. Tracing the electrical path from the main panel directly to the indoor air handler ensures that no safety switch is overlooked, and no homeowner is left waiting for air conditioning repair services that they do not actually need.

The Role of the Hidden Attic Disconnect Switch

To understand why your system might suddenly lose power, you have to understand the layout of a split-system air conditioner. The secondary HVAC disconnect switch is a localized safety mechanism designed to cut electrical power directly at the site of the equipment. While the main breaker in your garage protects the long wire running through your walls, the localized disconnect protects the specific appliance and the people working on it.

The National Electrical Code (NEC) strictly requires a local disconnecting means to be located within sight of the HVAC equipment. This is a critical safety mandate. If our technicians are working on Chandler AZ homes with attic-mounted air handlers, we need a way to guarantee that the power is entirely cut off before we open the metal casing. If the only shutoff was two floors down in the garage, someone could accidentally flip the breaker back on while a professional has their hands inside the high-voltage wiring.

Common types of secondary disconnects our team typically sees:

• Pull-out blocks: A physical block containing metal prongs (and sometimes fuses) that is pulled completely out of the box to break the circuit.

• Toggle switches: Similar to standard light switches but rated for high-voltage heavy loads, often used for gas furnaces and air handlers.

• Secondary circuit breakers: A traditional breaker switch mounted in a small sub-panel right next to the unit, which can trip independently of the main panel.

Main Panel vs. Secondary Disconnects

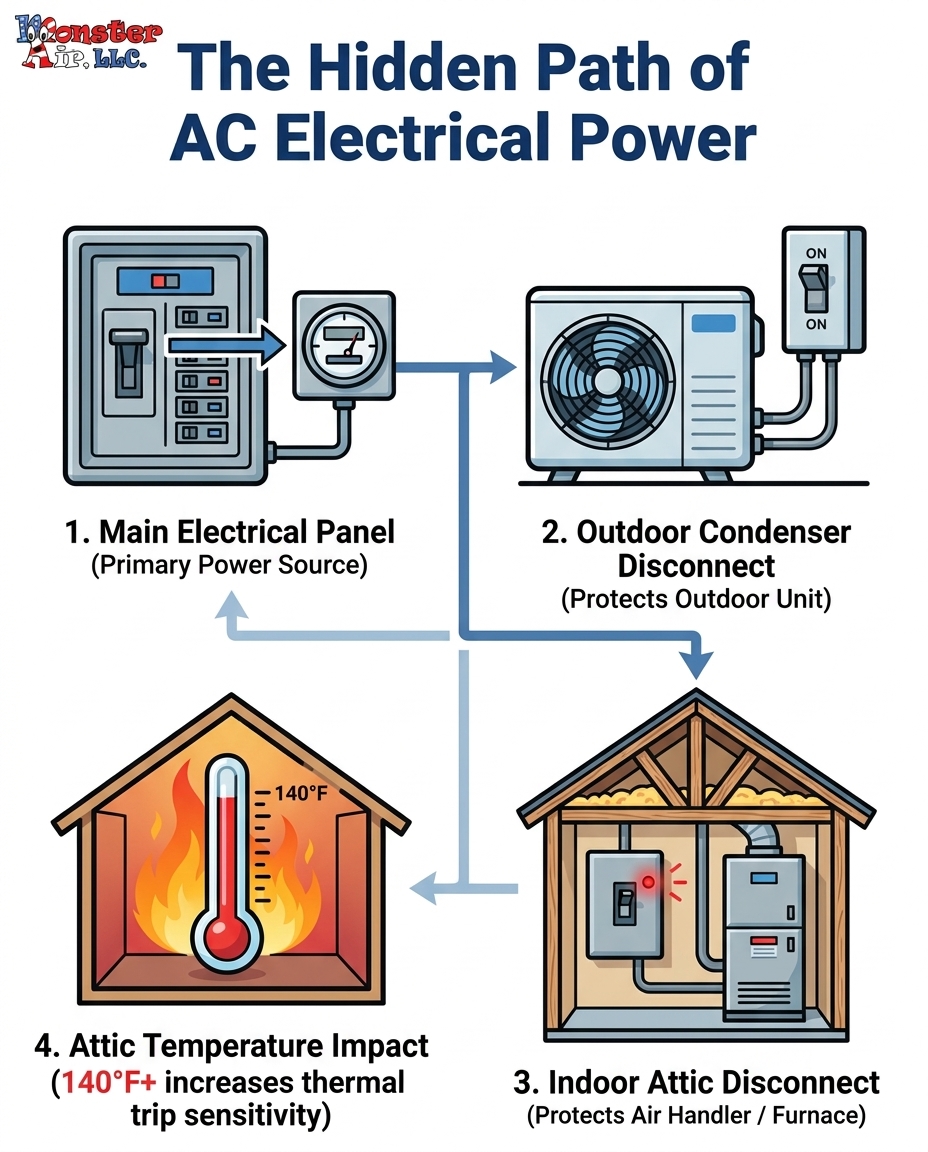

Power routing in a standard home follows a very specific hierarchy. High-voltage electricity flows from the street, through your meter, and into your main garage panel. From there, a dedicated heavy-gauge wire runs up into your attic and connects to the secondary disconnect box. Finally, a short whip of wire carries the power from that disconnect box into the actual air handler.

Because these are two separate protective devices on the same line, they can react differently to electrical stress. The main panel might remain completely untripped even if the localized attic switch has cut power to the air handler. This happens because the localized breaker is often sized slightly smaller, or because it is exposed to entirely different environmental conditions than the climate-controlled garage.

• Main HVAC Breaker — Typical Location: Garage / Exterior Wall — Primary Function: Protects the long wire run from the panel to the equipment — What a Trip Usually Means: Major power surge, dead short in the wiring, or severe system failure

• Outdoor Disconnect — Typical Location: Exterior wall near condenser — Primary Function: Localized safety shutoff for the outdoor compressor and fan — What a Trip Usually Means: Failing compressor, bad capacitor, or localized power spike

• Indoor Disconnect — Typical Location: Attic / Closet next to air handler — Primary Function: Localized safety shutoff for the indoor blower motor and controls — What a Trip Usually Means: Blower motor strain, electrical short, or extreme thermal overload

How Extreme Attic Temperatures Trigger Thermal Overloads

The Problem: You might wonder why a secondary breaker would suddenly trip if the blower motor itself hasn't failed. The answer lies in the physics of how standard circuit breakers operate. They do not just measure the flow of electricity; they measure the heat generated by that electrical flow.

The Cause: Standard circuit breakers utilize thermal trip mechanisms to detect dangerous electrical loads. Inside the breaker is a bimetallic strip. As electricity flows through it, the strip heats up. If too much current flows, the strip gets too hot, bends, and physically unlatches the switch to break the circuit. However, these thermal mechanisms become hyper-sensitive as the ambient temperature around them rises. Chandler's intense late-summer heat pushes poorly ventilated attics to extreme temperatures, often exceeding 140°F. When the air surrounding the breaker box is already baking hot, it takes significantly less electrical current to heat the bimetallic strip to its breaking point.

The Solution: This intense ambient heat leads to what the industry calls "nuisance trips." The breaker cuts power to protect the system, even if the AC motor itself hasn't shorted out. Our team regularly fields calls in late August where the safety switch is simply reacting to the overwhelming thermal strain of the environment. Recognizing this dynamic is crucial. If your system is repeatedly tripping in the late afternoon but runs fine at night, the issue might be attic ventilation or radiant heat rather than a failing motor. You might even find yourself wondering does your air conditioner need shade or if your attic needs an active exhaust fan to keep these sensitive electrical components cool.

Pausing Major Component Quotes for a Secondary Electrical Check

There is a critical decision point that many homeowners face during a major cooling outage. You have called for service, a technician has inspected the system, and you are handed a quote for a catastrophic electrical system failure or a complete blower motor replacement. Before you sign off on a major expense, it is vital to hit pause and ask a few targeted questions.

If you are told the indoor unit is completely dead, follow these steps to ensure you are making an informed decision:

1. Ask for the exact diagnostic path: Politely ask the technician to walk you through exactly where they tested for voltage. Did they stop at the main panel, or did they test the lines all the way up to the unit?

2. Verify the attic disconnect: Explicitly ask if the secondary attic electrical switches and disconnects have been visually inspected and physically tested.

3. Request a multimeter reading at the equipment: A truly dead system requires verifying power at every single juncture. The technician should be able to confirm with a multimeter that high voltage is successfully passing through the secondary disconnect and reaching the control board.

4. Seek a comprehensive second opinion: If the initial diagnostic felt rushed, or if the technician did not enter the attic to check the indoor unit's power supply, pause the process. A thorough second opinion can save significant time and prevent unnecessary replacements.

Taking a moment to verify these details empowers you to protect your home and your wallet. If you are unsure about the findings of a rushed visit, it is always wise to contact our HVAC technicians for a meticulous, un-rushed evaluation.

The Dangers of Investigating High-Voltage Attic Components

While it is crucial to know that these secondary breakers exist, investigating them is absolutely not a do-it-yourself project. We strongly warn readers about the severe dangers of interacting with 240-volt electrical systems, especially in confined, hazardous spaces.

The physical environment: Navigating a residential attic is inherently dangerous. You are dealing with exposed joists, deep insulation that hides structural hazards, and environmental conditions that can quickly become life-threatening. With temperatures easily exceeding 140°F in Chandler AZ homes with attic-mounted air handlers during the late summer, the risk of heat exhaustion is incredibly high. Losing your balance near high-voltage wiring in a sweltering, cramped space is a recipe for disaster.

The electrical risks: Even if you locate the disconnect box, flipping a tripped breaker back on without diagnosing the root cause is highly dangerous. If the breaker tripped because of a failing capacitor, a grounded wire, or a seized blower motor, forcing the power back on can lead to electrical fires, arc flashes, or permanent equipment damage. Licensed professionals have the insulated multimeters, specialized training, and protective safety gear required to test these components properly. They know how to safely verify voltage drops and continuity without putting the home at risk. The safest way to prevent these sudden electrical surprises is through a routine AC maintenance plan, where professionals inspect these hidden switches before the extreme weather arrives.

Ensuring Thorough Diagnostics for Your Home's Cooling System

A completely unresponsive air conditioner does not always mean a dead compressor or a ruined system. As we have explored, the complex electrical pathways that power your home's climate control include localized safety mechanisms designed to protect the equipment. Understanding that secondary attic breakers exist—and knowing how extreme ambient heat affects them—empowers you to ask the right questions when faced with a sudden outage.

You deserve to know exactly what is happening with your equipment before agreeing to major system overhauls. We encourage homeowners to partner with technicians who prioritize comprehensive, un-rushed diagnostics over quick assumptions. Ultimately, diagnosing the hidden attic breaker behind your dead AC requires patience, professional tools, and a commitment to testing every single link in the electrical chain. If your system is unresponsive and you want the peace of knowing the job is done right, reach out to Monster Air & Mechanical LLC for a professional evaluation that leaves no switch unchecked.

Frequently Asked Questions

Where is the secondary breaker for an air conditioner located?
The secondary breaker is typically located within sight of the indoor air handler or furnace. In homes with attic-mounted systems, this switch is usually mounted on a roof truss, a nearby wall stud, or directly on the exterior casing of the HVAC unit itself. It is designed to be easily accessible to a technician working on the equipment.

Can a hot attic cause an AC breaker to trip?
Yes, extreme ambient heat can absolutely cause a breaker to trip. Standard circuit breakers use a thermal bimetallic strip that bends and breaks the circuit when it gets too hot. If an attic reaches 140°F or higher, the breaker becomes hyper-sensitive and may trip even if the electrical current itself is within normal, safe limits.

Why did my indoor air handler suddenly lose power?
A sudden loss of power to the indoor unit usually points to a tripped safety switch or a blown fuse in the disconnect box. This can be caused by a failing blower motor drawing too much amperage, a short in the high-voltage wiring, or severe thermal overload from an overheated attic environment. A professional multimeter test is required to pinpoint the exact cause.

Is there a reset button on my indoor AC unit?
Most residential indoor AC units do not have a simple "reset button" on the casing itself. Instead, they rely on the secondary electrical disconnect switch or breaker located near the unit, as well as low-voltage safety switches (like float switches) inside the drain pan. Resetting any high-voltage breaker should only be done after a professional has ruled out a dead short.

How often should attic HVAC electrical components be inspected?
Attic electrical components should be inspected at least once a year during a routine pre-season tune-up. A technician will check the wiring connections for tightness, look for signs of scorching or heat damage inside the disconnect box, and verify that the safety switches are operating correctly before the heavy summer cooling loads begin.

What should I do if my AC is completely unresponsive?
If your system is completely dead, start by checking the thermostat batteries and the main electrical panel in your garage. If those are functioning normally, leave the system off and call a licensed HVAC professional. Do not attempt to navigate a hot attic to test high-voltage electrical boxes yourself, as this poses severe safety risks.
